上海金畔生物科技有限公司代理New England Biolabs（NEB）酶试剂全线产品，欢迎访问官网了解更多产品信息和订购。

产品信息

Luna® 探针一步法 RT-qPCR 试剂盒（无 ROX） |

Luna 探针一步法 RT-qPCR 试剂盒（无 ROX）经过优化，适用于采用水解探针法的靶标 RNA 序列实时定量。一步法 RT-qPCR 为 RNA 检测和定量提供了一种便捷、强大的方法。在同一管中，RNA 首先由反转录酶转化为 cDNA，然后使用 DNA 依赖型 DNA 聚合酶扩增 cDNA，从而可以进行 qPCR 定量。探针法 qPCR/RT-qPCR 原理是利用聚合酶的 5´→3´ 核酸外切酶活性，将淬灭的目标特异性探针切断发出荧光，并实时监测荧光值的增加，以测量 PCR 每个循环中的 DNA 扩增。通过荧光信号显著超过背景荧光所经历的循环数，可以确定 Cq 值。Cq 值可用于评估两个或多个样品之间的靶基因相对丰度，或者参考通过已知浓度样品绘制的标准曲线，对未知样品绝对定量。

在 Luna 探针一步法 RT-qPCR 试剂盒（无 ROX）中，联合使用 Taq 热启动 DNA 聚合酶与新型 WarmStart 反转录酶，通过适配体可逆抑制来双重控制酶活性。这种温控活化机制可避免热循环前的非特异扩增，从而让在室温下建立体系更安全。经改造的 Luna WarmStart 反转录酶的热稳定性比许多反转录酶更高，其最佳反应温度为 55℃。对于困难靶标/模板，最多可将反转录步骤的温度升至 60℃，且不会影响 Luna 性能。

注意：为确保 Luna WarmStart 反转录酶完全激活，建议温育温度不低于 50℃。

Luna 探针一步法 RT-qPCR 试剂盒（无 ROX）浓度为 2X，包含 Taq 热启动 DNA 聚合酶、dNTP 和所有必需的缓冲液成分。配方中不含参比染料，与不需要 ROX 的仪器兼容（如果需要 ROX 校正，可自行添加 ROX 染料）。反应预混液包含可防止交叉污染的 dUTP，以及有助于观察反应体系建立的非荧光可见示踪染料。该示踪染料与 qPCR 常用荧光团的光谱没有重叠，因此不会干扰实时检测。

Luna WarmStart 反转录酶预混液的浓度为 20X，其中包含 Luna WarmStart 反转录酶以及用于防止 RNA 降解的小鼠 RNase 抑制剂（详情请见产品手册中的模板制备）。适用于各种 RNA 样品类型（总 RNA、poly（A）-RNA 等）和来源。

.

图 1：NEB 的 Luna 通用探针一步法 RT-qPCR 试剂盒*具有更高的灵敏度、更出众的可重复性及更优异的 RT-qPCR 表现
Luna® 探针一步法 RT-qPCR 试剂盒（无 ROX） |
使用 Luna 通用探针一步法 RT-qPCR 试剂盒，进行了人 GAPDH 基因的 RT-qPCR 靶标检测，起始量模板为 8 个 10 倍梯度稀释的 Jurkat 总 RNA（1 μg – 0.1 pg），每个浓度的样品做 8 个重复。实验按照试剂盒建议的操作流程进行，反应中包含一个 55℃ 温育 10 分钟的反转录步骤，以便于具有热稳定性的 Luna WarmStart 反转录酶发挥作用。

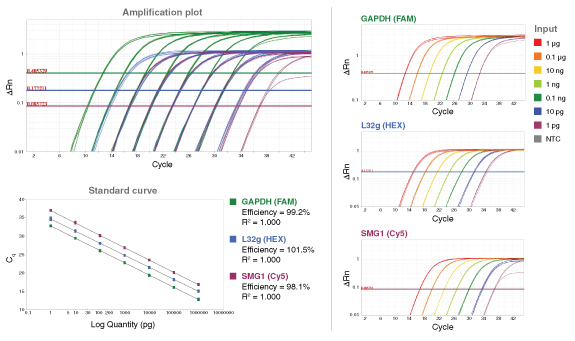

图 2：NEB 的 Luna 通用探针一步法 RT-qPCR 试剂盒*在多重检测中展现强大功效
Luna® 探针一步法 RT-qPCR 试剂盒（无 ROX） |
使用 Luna 通用探针一步法 RT-qPCR 试剂盒*，对人 GAPDH 基因、核糖体蛋白 L32g 和 PI3 激酶相关的激酶 SMG1 基因进行多重 RT-qPCR 靶标检测。起始量模板浓度为 7 个 10 倍稀释的 Jurkat 总 RNA（1 μg – 1 pg），每个浓度的样品做 4 个重复。扩增图表如上所示，左边是叠加的结果，右边是每个基因单独的检测结果。鉴于拷贝数的差异，低拷贝的模板（SMG1）使用的引物浓度为 0.4 µM，高拷贝的模板（L32g 和 GAPDH）使用的引物浓度为 0.2 µM。Luna 产品在多重 RT-qPCR 检测中展现出卓越的效率、可重复性、灵敏度和性能。
图 3：通过与市售的探针法 RT-qPCR 试剂相比，Luna 产品展现出更好的稳定性和特异性
Luna® 探针一步法 RT-qPCR 试剂盒（无 ROX） |
使用市售的 RT-qPCR 试剂对 7 个不同丰度、长度和 GC 含量的 RT-qPCR 靶标进行测试。测试均根据产品说明书进行，数据来源于两位实验人员。从以下方面评估了测试结果：扩增效率、痕量样本检测能力及无模板扩增值（ΔCq = 无模板对照的平均 Cq – 最低起始量的平均 Cq）。此外，一致性、可重复性以及曲线的整体质量评估也作为实验的参考（质量分数）。柱状图展示了符合可接受的性能标准的百分比（由点图上的绿色框表示，质量分数 > 3）。NEB 和其它供应商的结果如下所示：Quanta，qScript™ XLT 1-Step RT-qPCR ToughMix®；ABI，TaqMan® RNA-to-Ct 1-Step Kit；QIAGEN，QuantiFast® Probe RT-PCR Kit；Bio-Rad，iTaq™ Universal Probes One-Step Kit；Promega®，GoTaq® Probe 1-Step RT-qPCR System。NEB 的 Luna 通用探针一步法 RT-qPCR 试剂盒*性能优于其它测试试剂。

详细了解 qPCR/RT-qPCR 综合测试和“dots in boxes”数据可视化分析方法。

*数据来源于 Luna 通用探针一步法 RT-qPCR 试剂盒（NEB #E3006）。Luna 探针一步法 RT-qPCR 试剂盒（无 ROX）（NEB #E3007）的性能与之相同。

产品类别:
Luna® qPCR & RT-qPCR Products,
PCR, qPCR & Amplification Technologies Products

应用:
qPCR & RT-qPCR,
PCR,
DNA Amplification, PCR & qPCR

  • 试剂盒组成

    本产品提供以下试剂或组分：

    NEB # 名称 组分货号 储存温度 数量 浓度
    • E3007E     -20
        Luna® WarmStart® RT Enzyme Mix M3002EVIAL -20 2 x 1.25 ml 20 X
        Luna® Probe One-Step Reaction Mix (No ROX) M3007EVIAL -20 1 x 25 ml 2 X
        Nuclease-free Water B1502EVIAL -20 1 x 25 ml Not Applicable

  • 相关产品

    相关产品

    • 南极热敏 UDG
    • Luna® 通用一步法 RT-qPCR 试剂盒
    • Luna® 通用 qPCR 预混液
    • Luna® 通用探针法 qPCR 预混液

  • 注意事项

    1. Primer Design
      The use of qPCR primer design software (e.g., Primer3) maximizes the likelihood of amplification success while minimizing nonspecific amplification and primer dimers. Targets with balanced GC/AT content (40–60%) tend to amplify most efficiently. Where possible, enter sufficient sequence around the area of interest to permit robust primer design and use search criteria that permit cross-reference against relevant sequence databases (to avoid potential off-target amplification). It is advisable to design primers across known RNA splicing sites in order to prevent amplification from genomic DNA.
    2. Primer and Probe Concentrations
      For most targets, a final concentration of 400 nM (each primer) will provide optimum performance. If needed, primer concentrations can be optimized between 100–900 nM. Probe should be included at 200 nM for best results. Probe concentration can be optimized in the range of 100–500 nM.
    3. Multiplexing
      When determining which fluorophores to include in a multiplex reaction, be sure to choose compatible reporter dyes and quenchers (e.g., those that can be accommodated by the chosen real-time instrument with minimal overlap in fluorescence spectra). For ROX-dependent instruments, avoid ROX-labeled probes. Include 400 nM of forward and reverse primers and 200 nM probe for each target to be detected in the reaction. For targets that differ significantly in abundance, use of a lower primer concentration (e.g. 200 nM) for the more abundant target(s) is recommended. Adjust concentrations if necessary based on performance (primer 100–900 nM, probe 100–500 nM). When loading a qPCR protocol onto the real-time instrument, be sure to select the appropriate optical channels, as some instruments have a single channel recording mode that would prevent multiplex data collection and analysis. The functionality of the primer and probe sets should be tested individually before attempting a multiplex reaction.
    4. Amplicon Length
      To ensure successful and consistent qPCR results, it is important to maximize PCR efficiency. An important aspect of this is the design of short PCR amplicons (typically 70–200 bp). Some optimization may be required for targets that exceed that range.
    5. Template Preparation and Concentration
      Luna RT-qPCR is compatible with RNA samples prepared through typical nucleic acid purification methods. Prepared RNA should be stored in an EDTA-containing buffer (e.g., 1X TE) for long-term stability, and dilutions should be freshly prepared for a qPCR experiment in either TE or water. Note that the quality of RNA templates can greatly affect RT-qPCR efficiency. RNA should be handled with appropriate precautions to prevent RNase or DNase contamination. Use of nuclease-free water (provided) is strongly recommended. Where useful, RNA may be treated with DNase I to remove contaminating genomic DNA.
      Generally, a useful concentration of standard and unknown material will be in the range of 108 copies to 10 copies. Note that for dilutions in the single-copy range, some samples will contain multiple copies and some will have none, as defined by the Poisson distribution. For total RNA, Luna One-Step Kits can provide linear quantitation over an 8-order input range of 1 μg – 0.1 pg. For most targets, a standard input range of 100 ng – 10 pg total RNA is recommended. For purified mRNA, input of ≤ 100 ng is recommended. For in vitro-transcribed RNA, input of ≤ 109 copies is recommended.
    6. ROX Reference Dye

      Some real-time instruments recommend the use of a passive reference dye (typically ROX) to overcome well-to-well variations that could be caused by machine limitations such as “edge effect”, bubbles, small differences in volume, and autofluorescence from dust or particulates in the reaction. However, ROX normalization does little to the variations caused by pipetting errors of templates/primers, heterogeneous mixing, and evaporation/condensation issues.

      A universal passive reference dye is included in the following Luna® qPCR products: Luna Universal qPCR Master Mix (NEB #M3003), Luna Universal Probe qPCR Master Mix (NEB #M3004), Luna Universal One-Step RT-qPCR Kit (NEB #E3005), and Luna Universal Probe One-Step RT-qPCR Kit (NEB #E3006). These products support broad instrument compatibility (High-ROX, Low-ROX, ROX-independent) so no additional ROX is required for normalization.

      The Luna Probe One-Step RT-qPCR Kit (No ROX) (E3007) contains no reference dye and is compatible with any instrument that does not require ROX. If ROX normalization is needed, ROX can be added. Please refer to instrument manufacturer’s instructions for greater details.

    7. Carryover Contamination Prevention
      RT-qPCR is an extremely sensitive method, and contamination in new RT-qPCR assays with products from previous amplification reactions can cause a variety of issues, such as false positive results and a decrease in sensitivity. The best way to prevent this “carryover” contamination is to practice good laboratory procedures and avoid opening the reaction vessel post amplification. However, to accommodate situations where additional anti-contamination measures are desired, Luna qPCR mixes contains a mixture of dUTP/dTTP that results in the incorporation of dU into the DNA product during amplification. Pretreatment of qPCR/RT-qPCR experiments with uracil DNA glycosylase (UDG) will eliminate previously-amplified uracil-containing products by excising the uracil base to produce a non-amplifiable DNA product. The use of a thermolabile UDG is important, as complete inactivation of the UDG is required to prevent destruction of newly synthesized qPCR products.

      To enable carryover prevention, 0.025 units/μl Antarctic Thermolabile UDG (NEB #M0372) should be added to the reaction mix. To maximize elimination of contaminating products, set up the qPCR experiments at room temperature or include a 10 minute incubation step at 25°C before the initial denaturation step.

    8. Reaction Setup and Cycling Conditions
      Due to dual hot-start feature of Luna One-Step Kits, it is not necessary to set up reactions on ice or preheat the thermocycler prior to use.
      For 96-well plates, a final reaction volume of 20 μl is recommended.
      For 384-well plates, a final reaction volume of 10 μl is recommended.
      When programming instrument cycling conditions, ensure a plate read is included at the end of the extension step, and a denaturation (melt) curve after cycling is complete to analyze product specificity.
      Amplification for 40 cycles is sufficient for most applications, but for very low input samples 45 cycles may be used.
